01 - 0

ARX 160 – 11″

5.56x45mm

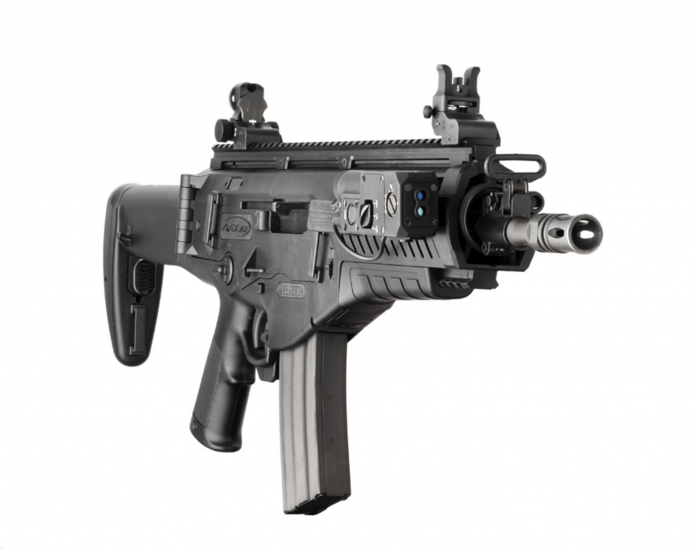

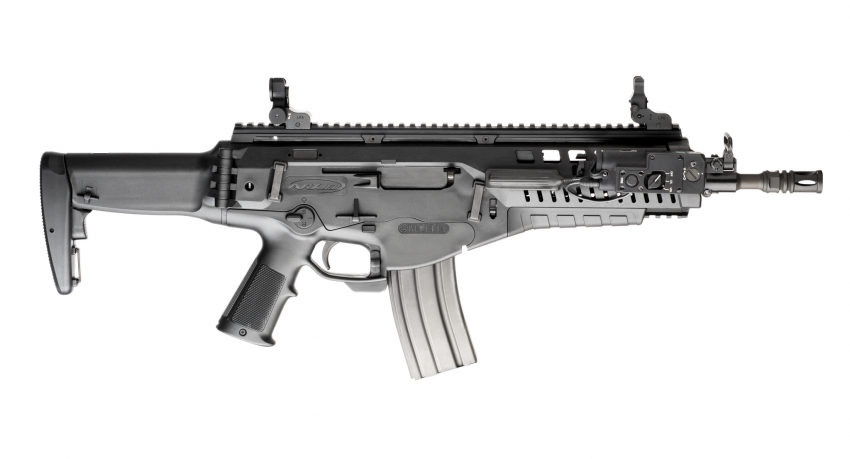

The Beretta ARX160 assault rifle has improved efficiency in the field by innovative engineering geared specifically toward the soldier. The ARX160 modular platform features fully ambidextrous controls and a pin-free design. The coking handle, the magazine release button, the fire selector button, the hold open lever, the folding sock button and the barrel release latch are all designed to be comfortably operated by right- and left-hand users. The ejection side can be reversed from right to left, depending on the user’s preferences.

technical info

download specifications

title

ARX 160 – 11″

Caliber

5.56x45mm

Operating principle

Gas operated short stroke piston

Locking system

Locked breech rotating bolt

Barrel length

approx. 280mm / 11in

Barrel thread

1/2" x28

Rifling pitch

178mm / 7.0in

Muzzle cage

Bird Cage

Sights system

Flip-up iron sight

Sight radius

365mm / 14.37in

Lower receiver material

Fiberglass reinforced technopolymer

Upper receiver material

Fiberglass reinforced technopolymer

Accessory rail

MIL-STD-1913

Safeties

Manual safety

Fire selector positions

Three position S-1-F

Reciprocating system

Yes

Stock

Foldable, Telescopic (4 positions)

Length min/max

approx. 560-786mm / 22.05-30.94in

Height

approx. 255mm / 10.04in

Width

approx. 80mm / 3.15in

Weight - with empty magazine

approx. 3400g / 119.93oz

Magazine capacity

30 rounds

Magazine type

STANAG
