PMX

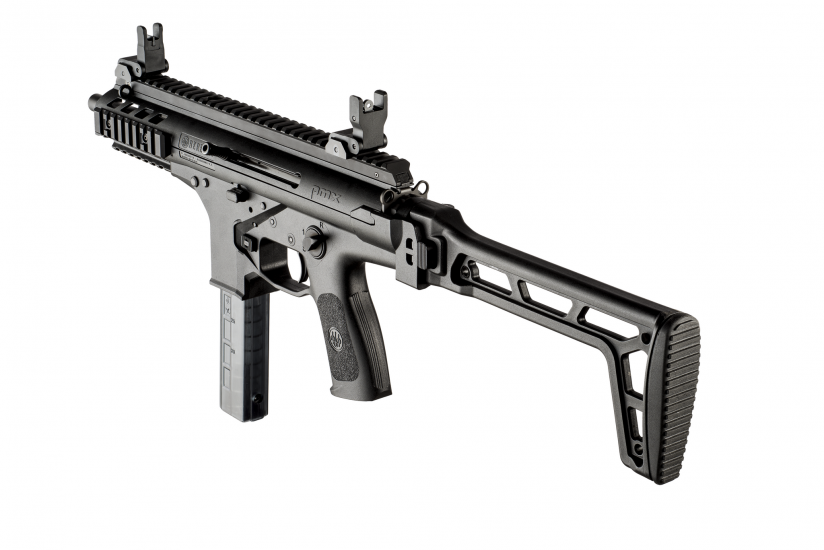

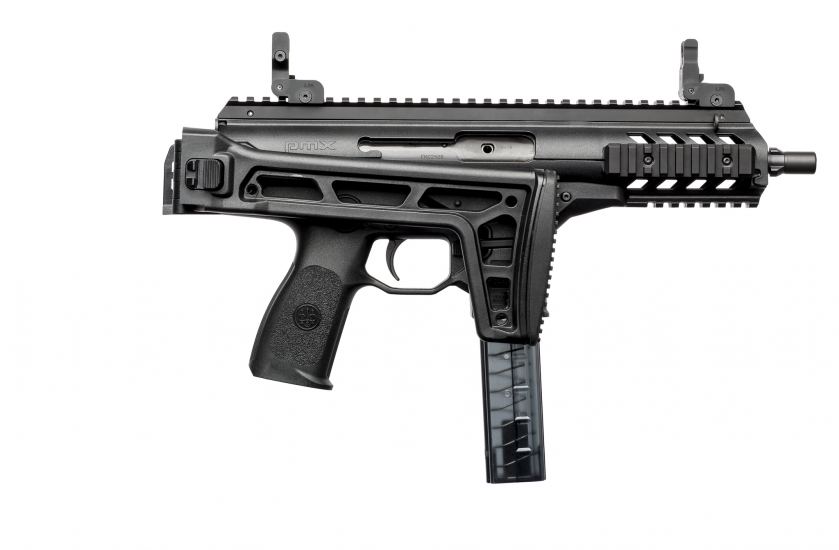

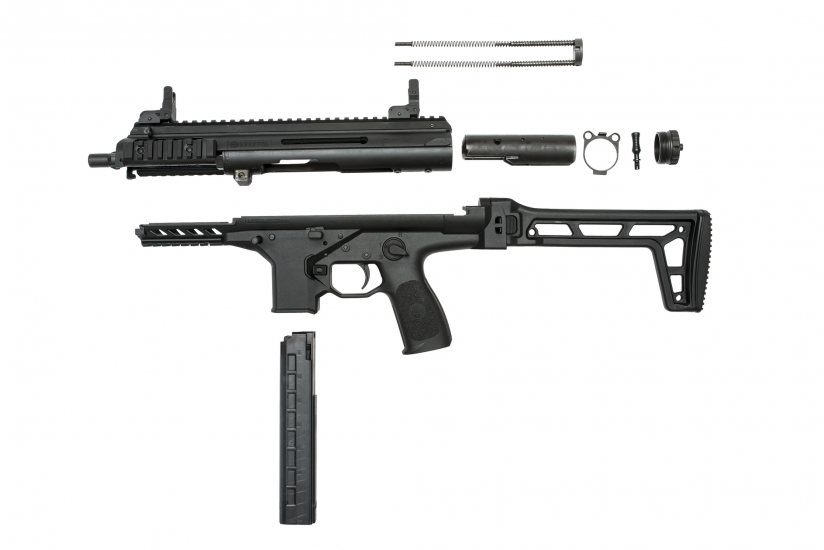

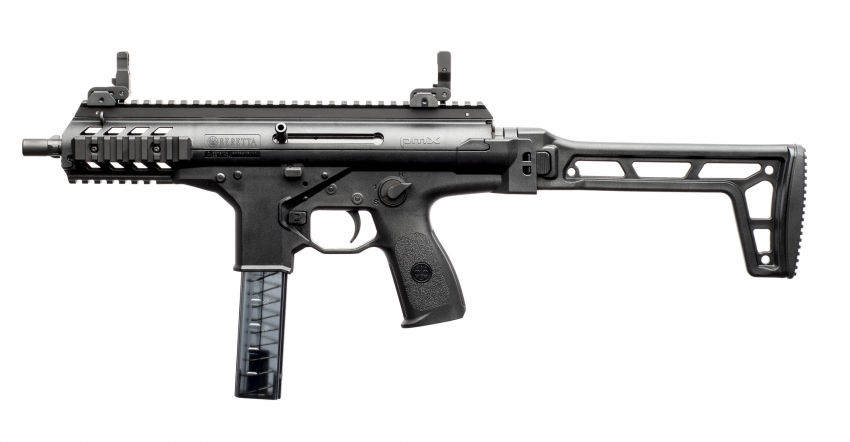

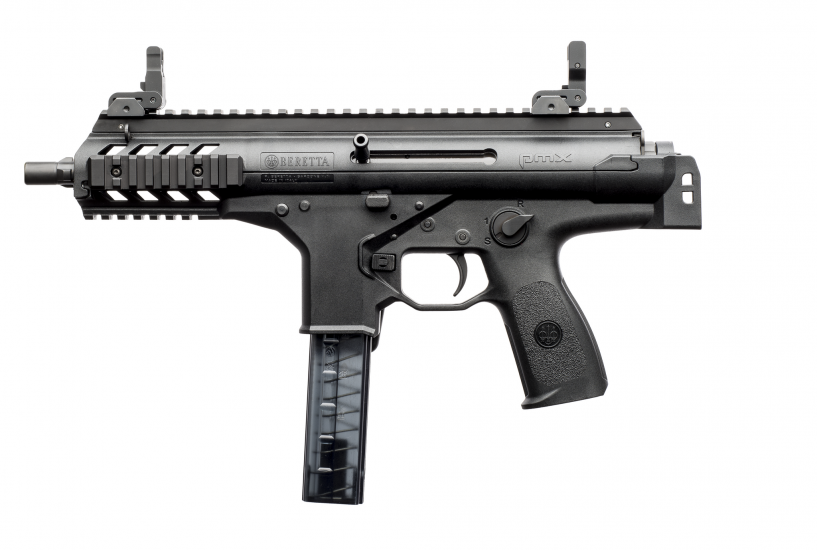

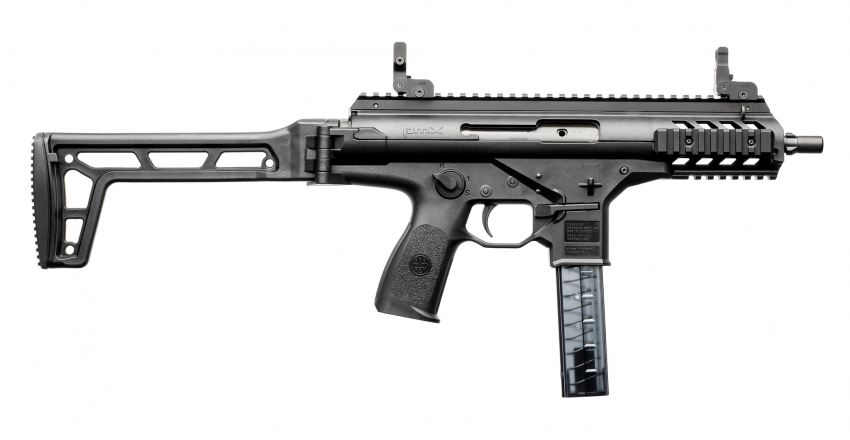

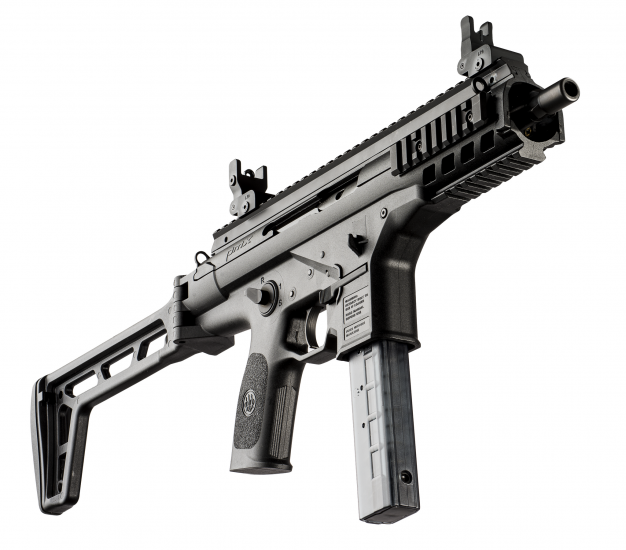

9x19mmThe PMX is the latest SMG developed by Beretta. The extensive use of polymer materials and light alloy metals allowed the design of a compact, lightweight, yet rugged structure, one which is versatile and easy to deploy in combat. The major components: barrel and bolt, are machined from special high-strength steel, specifically designed to withstand the rigors of harsh environments and abusive conditions. The lightweight and ergonomically designed stock can be folded by simply pushing a button. The oversized magazine release button is positioned on both sides of the sub-machine gun, while the cocking handle can be easily revered to be comfortably operated from either side. The PMX uses a translucent, lightweight, and yet resistant, 30-round polymer magazine allowing the visual count of the rounds present in the mag. The Beretta PMX is equipped with Picatinny rails (MIL-STD-1913) positioned on top, bottom and on the sides of the receiver.
technical info
download specificationstitle
PMX
Caliber
9x19mm
Operating principle
Blowback
Barrel length
approx. 175mm / 6.89in
Barrel thread
1/2" x28
Rifling pitch
250mm / 10in
Sights system
Flip-up iron sight
Sight radius
250mm / 10in
Lower receiver material
Fiberglass reinforced technopolymer
Upper receiver material
Metal tube overmolded with fiberglass reinforced technopolymer
Accessory rail
MIL-STD-1913
Safeties
Manual safety
Fire selector positions
Three position S-1-F
Reciprocating system
Yes
Stock
Foldable
Length min/max
approx. 418-640mm / 16.46-25.20in
Height
approx. 250mm / 9.84in
Width
approx. 74mm / 2.91in
Weight - with empty magazine
approx. 2,5kg / 88.18oz
Magazine capacity
30 rounds
