GLX160 – standalone

40x46mm

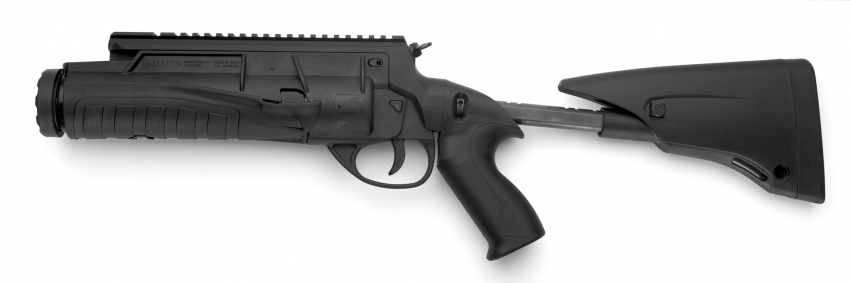

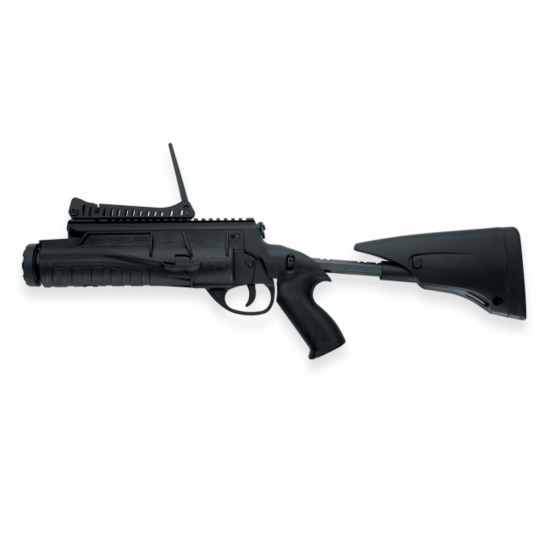

The GLX160 is a manually operated, single-shot grenade launcher that fires low velocity 40x46mm ammunition. The five-position telescopic stock may be easily adjusted in length in order to better adapt to the shooter’s requirements and measures. The GLX160 uses a slide forward configuration which makes it fully ambidextrous.

technical info

download specifications

title

GLX160 – standalone

Caliber

40x46mm

Locking system

Rotating bolt

Barrel length

approx. 280mm / 11in

Rifling pitch

1200mm / 47.24in

Sights system

Fron sight adjustable in elevation and windage. Multi-position rear sight (from 50m to 400m in 50m step)

Frame material

Fiberglass reinforced polymer

Safeties

Ambidextrous button manual safety

Fire selector positions

S-1

Stock

Telescopic (5 positions)

Length min/max

approx. 523-643mm / 20.59-25.32in

Height

approx. 164mm / 6.46in

Width

approx. 89mm / 3.50in

Weight - with empty magazine

approx. 2,2kg / 77.60oz

Magazine capacity

1,0
